LG TPD.RT2875T.PD781 02-4RT875B65 Power Supply Main Board for TV 65UA73006LA UA73 65

Price:

89.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. LG TPD.RT2875T.PD781 02-4RT875B65 Power Supply Main Board for TV 65UA73006LA UA73 65
LG JIEFU 42-WFA317-X6GL1HX Speakers, Pair, 6 Ohms, 10W, for TV 65UA73006LA UA73 65
LG JIEFU 42-WFA317-X6GL1HX Speakers, Pair, 6 Ohms, 10W, for TV 65UA73006LA UA73 65
19.95 €
19.95 €
LG SSC_Y25_OD30_65UA75_BOE LED strips – Set of 6 for TV model 65UA73006LA UA73 65 (Original)
LG SSC_Y25_OD30_65UA75_BOE LED strips – Set of 6 for TV model 65UA73006LA UA73 65 (Original)
79.95 €
79.95 €

LG TPD.RT2875T.PD781 02-4RT875B65 Power Supply Main Board for TV 65UA73006LA UA73 65

https://multitech.es/web/image/product.template/153/image_1920?unique=de46a8d

89.95 € 89.95 EUR
89.95 €

Compartir

Not Available For Sale

This combination does not exist.

Ask us for real photosOn WhatsApp, before you buy
30-day returnsIf it doesn't fit, send it back
Come and see itSan Pedro de Alcántara (Marbella)
24/72h shippingInsurance included
Envio: Correos Express Envío: Repuesto grande
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

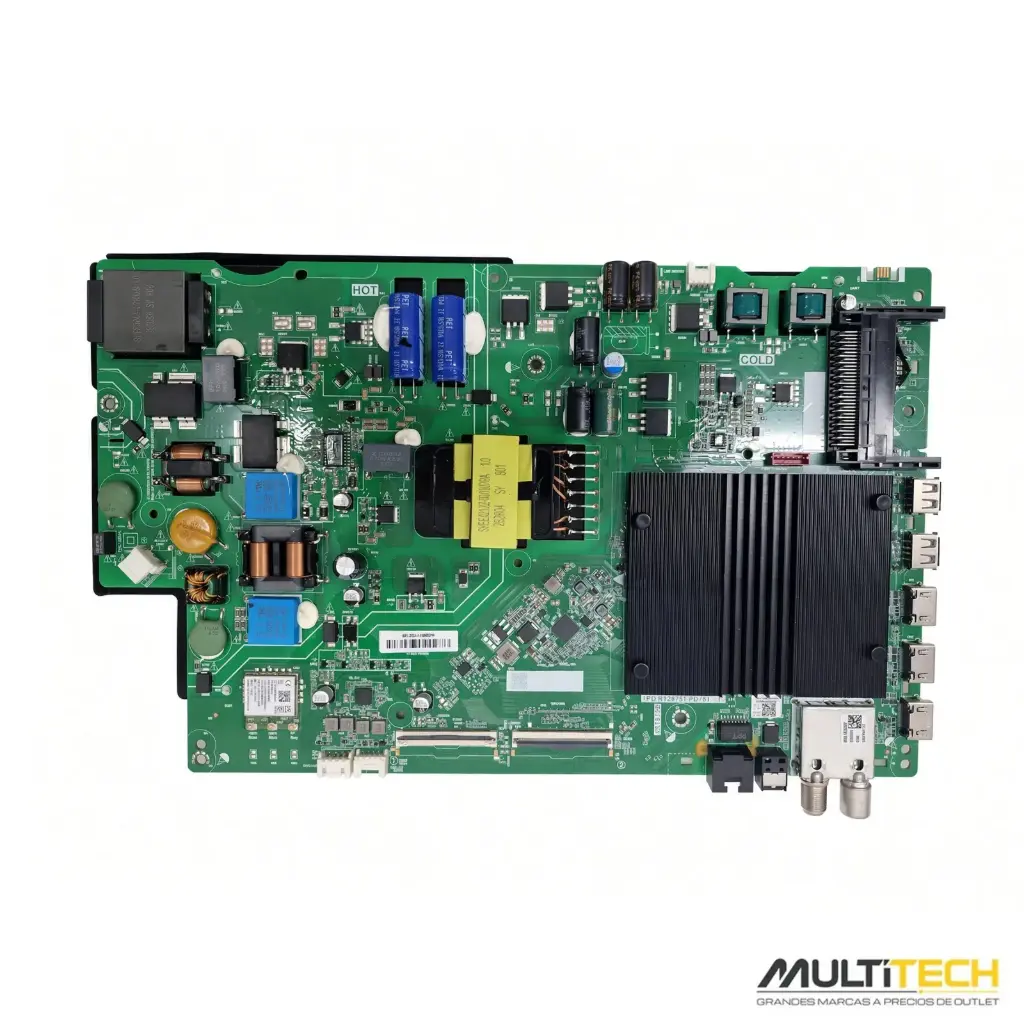

Main board + power supply (all in one) — LG 65UA73006LA (UA73, 2025)

Design TPD.RT2875T.PD781(1.0) · chassis U#57A · Mini LED Local Dimming · T-CONless design (direct output to EPI/CEDS panel, no T-CON board) · GRADE A ZERO HOURS OF USE

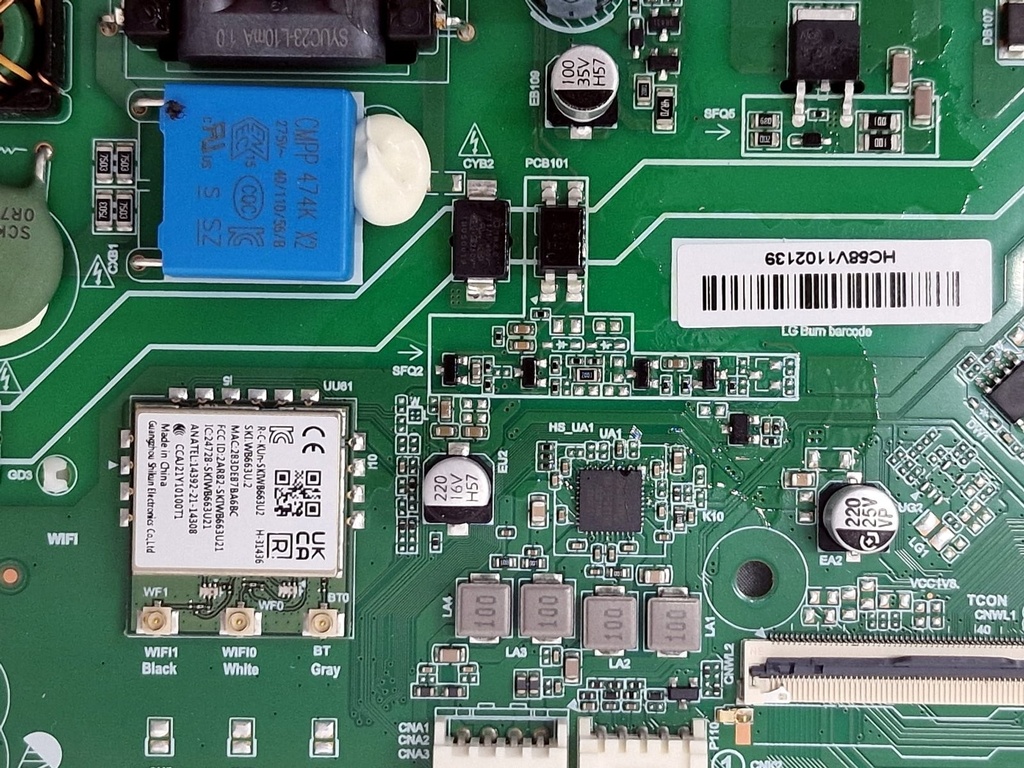

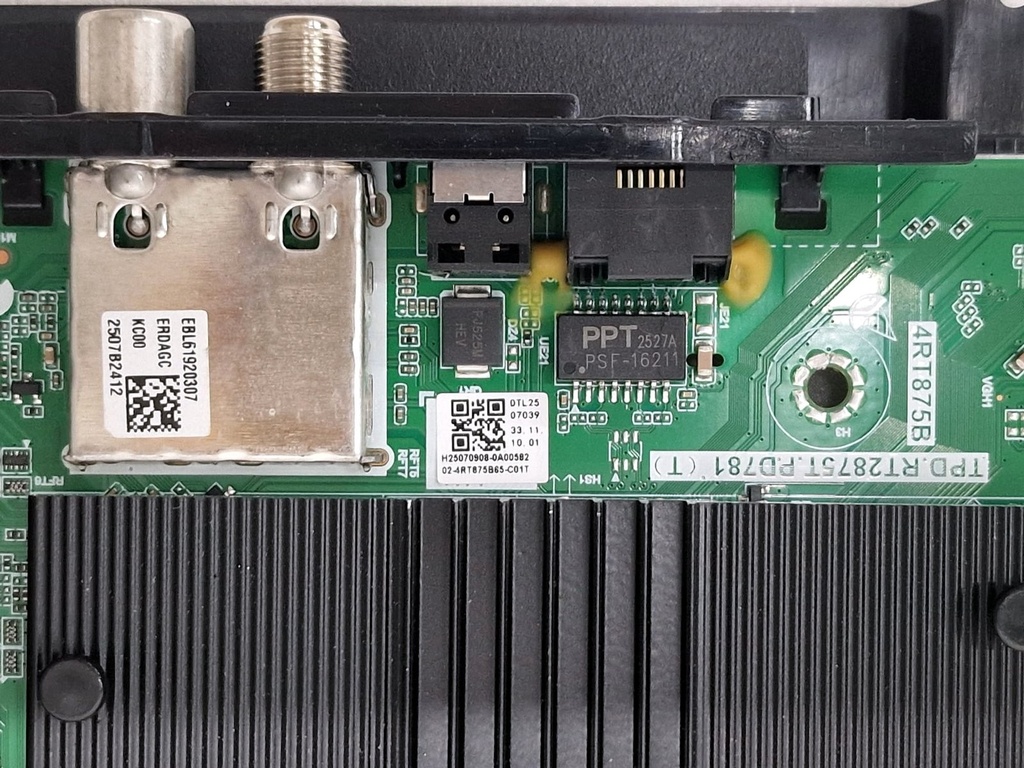

Board designTPD.RT2875T.PD781(1.0) · label 5GEBT000-02S5 · MZ58S1077C · 30276001 · WiFi/BT module NOT included
Firmwaresee date label 57AX5/L7/A (06.08.25) (SOFTWARE LABEL, see photos)
IncludesCombo board: main board + integrated power supply + WiFi/BT on board · tuner included
Connectivity4x HDMI 2.1 , 2x USB, LAN, satellite/terrestrial tuner, CI+
Extracted fromLG 65UA73006LA (UA73 4K UHD 65", 2025) · Manufactured 11/2025 · S/N 511TAAC1K336
ConditionGRADE A — ZERO HOURS OF USE: from a new TV with panel damaged in transit, verified
✓ COMPATIBILITY

Chassis TCL (ODM) TPD.RT2875T with integrated power supply: LG matches the board by reference and firmware — compare the silkscreen marking TPD.RT2875T.PD781 with that of your board or check compatibility by message before purchasing.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
