Xiaomi T-CON board HE0702PN044A3 NP-140TL TV L75MB-FPEU 75 Original, Zero Hours

Price:

34.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. Xiaomi T-CON board HE0702PN044A3 NP-140TL TV L75MB-FPEU 75 Original, Zero Hours
Xiaomi JL.D750C1330-032AS-M_V01 LED strips, set of 6, for L75MB-FPEU 75 TV, genuine
Xiaomi JL.D750C1330-032AS-M_V01 LED strips, set of 6, for L75MB-FPEU 75 TV, genuine
69.95 €
69.95 €
Xiaomi Speakers 1300102000210A 1300102000211A Pair 6 Ohm 10W TV L75MB-FPEU 75
Xiaomi Speakers 1300102000210A 1300102000211A Pair 6 Ohm 10W TV L75MB-FPEU 75
19.95 €
19.95 €

Xiaomi T-CON board HE0702PN044A3 NP-140TL TV L75MB-FPEU 75 Original, Zero Hours

https://multitech.es/web/image/product.template/297/image_1920?unique=de46a8d

34.95 € 34.95 EUR
34.95 €

Compartir

Not Available For Sale

This combination does not exist.

Ask us for real photosOn WhatsApp, before you buy
30-day returnsIf it doesn't fit, send it back
Come and see itSan Pedro de Alcántara (Marbella)
24/72h shippingInsurance included
Envio: Correos Express Envio: InPost Locker Envío: Repuesto grande
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

T-CON Xiaomi HE0702PN044A3 (NP-140TL) — L75MB-FPEU from a new TV

P/N HE0702PN044A3 · A003 007 004 · GRADE A ZERO HOURS OF USE

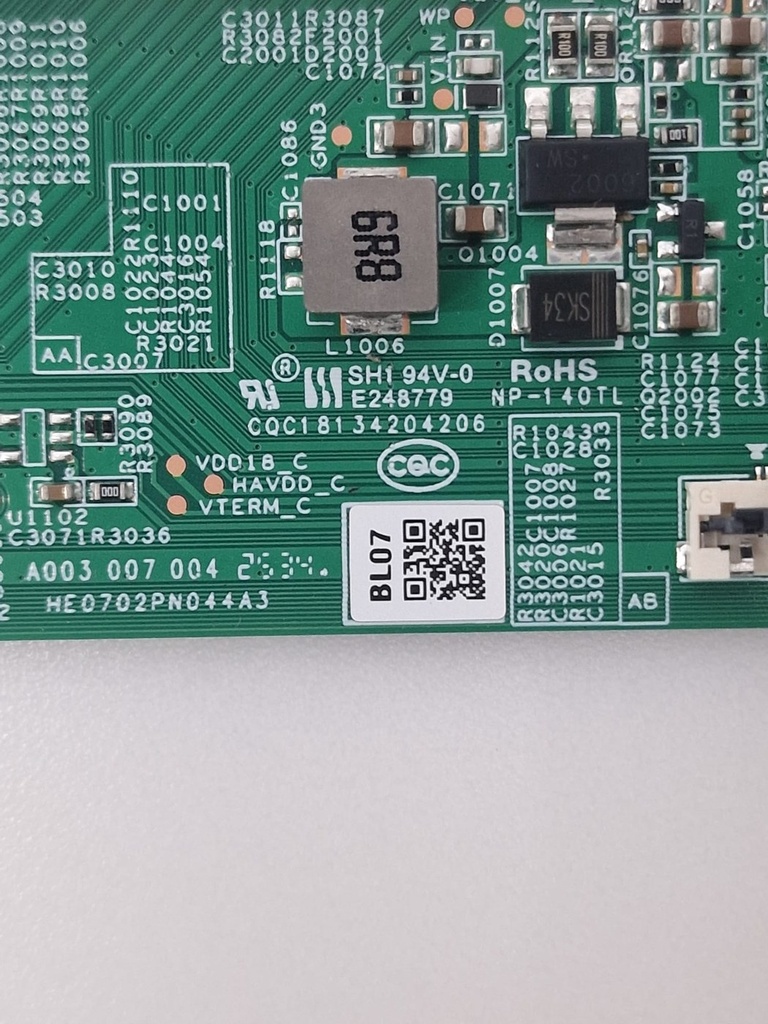

IdentificationSilkscreen marking HE0702PN044A3 · code A003 007 004 · PCB NP-140TL · UL E248779 SHI 94V-0 · CQC18134204206 · labels BL07 / BL08 · batch 2534 (see photos)

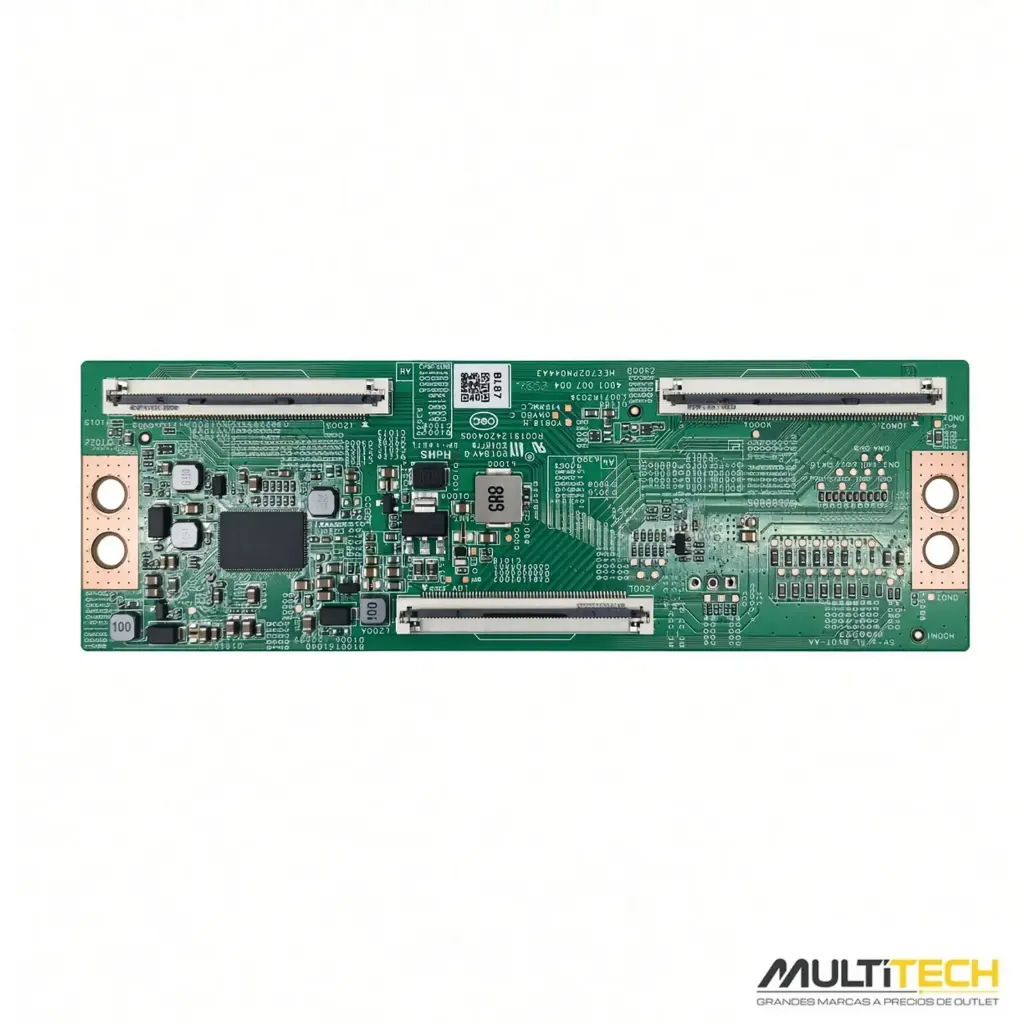

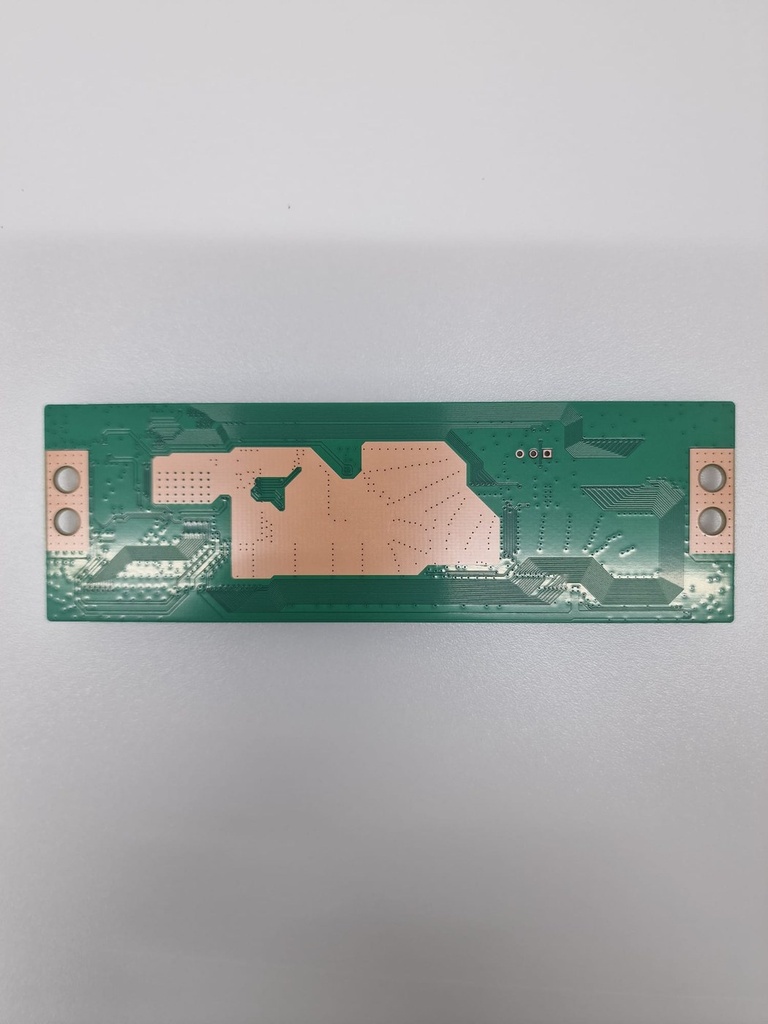

IncludesComplete T-CON board exactly as removed from the TV (see photos of both sides)

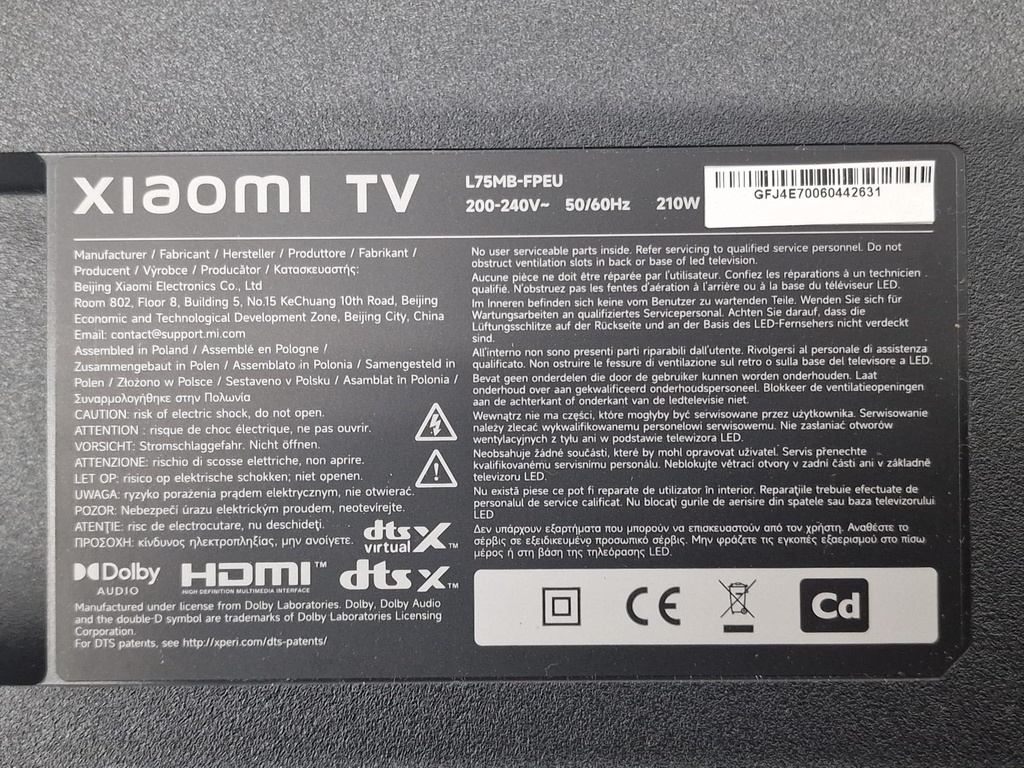

Extracted fromXiaomi TV L75MB-FPEU (75", 210 W, assembled in Poland) · NEW TV with protective plastics, panel broken in transit — the electronics were not involved in the fault · S/N GFJ4E70060442631
Physical conditionGRADE A — ZERO HOURS OF USE. TESTED AND WORKING: the donor TV was powered on and verified working correctly before extraction — only the panel was broken by the impact in transit. 100% functional part
✓ COMPATIBILITY

For Xiaomi TV L75MB-FPEU and other 75" TVs fitted with this same board. Compare the silkscreen marking HE0702PN044A3 and the code A003 007 004 with those on your board, or message us via the eBay messaging system stating your TV model and version and we will confirm compatibility.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Physically verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
