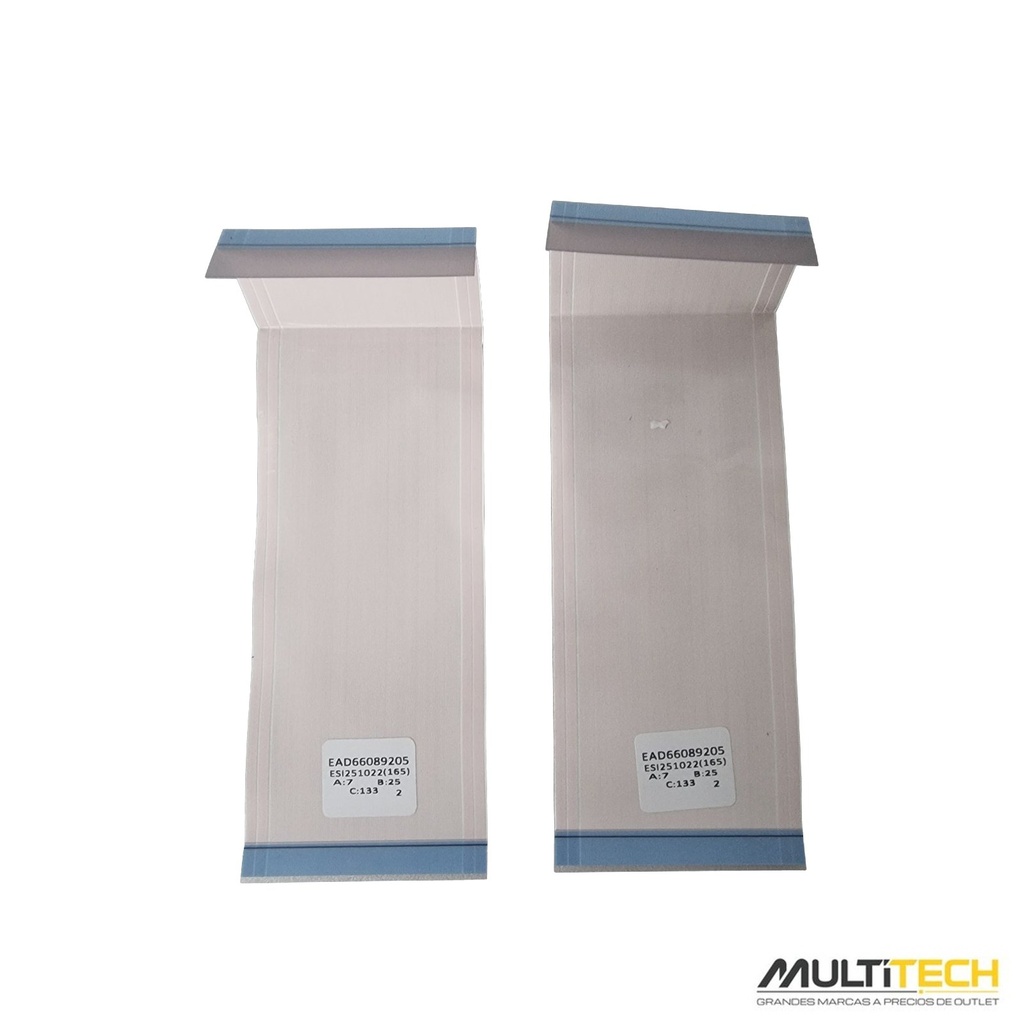

LG EAD66089205 LVDS Flex Cables, 165mm Pair, for OLED48C54LA C5 OLED TV – Genuine

https://multitech.es/web/image/product.template/122/image_1920?unique=555bbd7

14.95 € 14.95 EUR
14.95 €

Compartir

Not Available For Sale

  • Grade

This combination does not exist.

Cables y flex LG Envio: InPost Locker
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

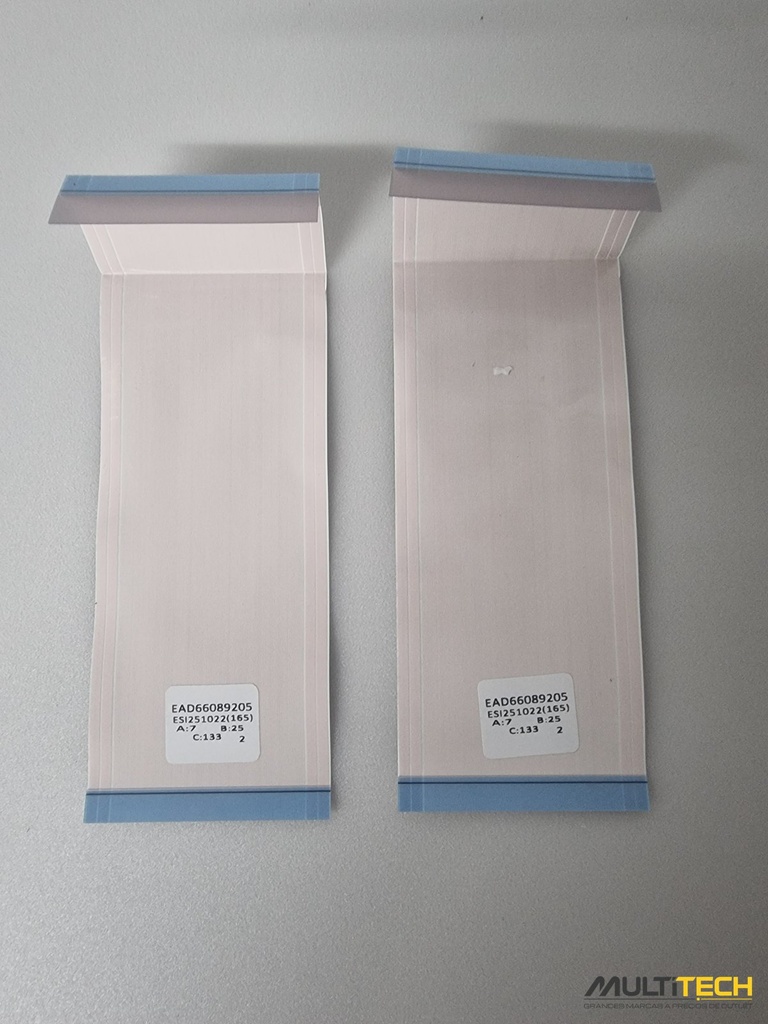

LVDS flex cables LG (PAIR) — EAD66089205

Pair of original flat cables main → T-CON · 165 mm · Unused

TypePAIR (2 pcs) of FFC/LVDS flex cables of 165 mm, main board to T-CON

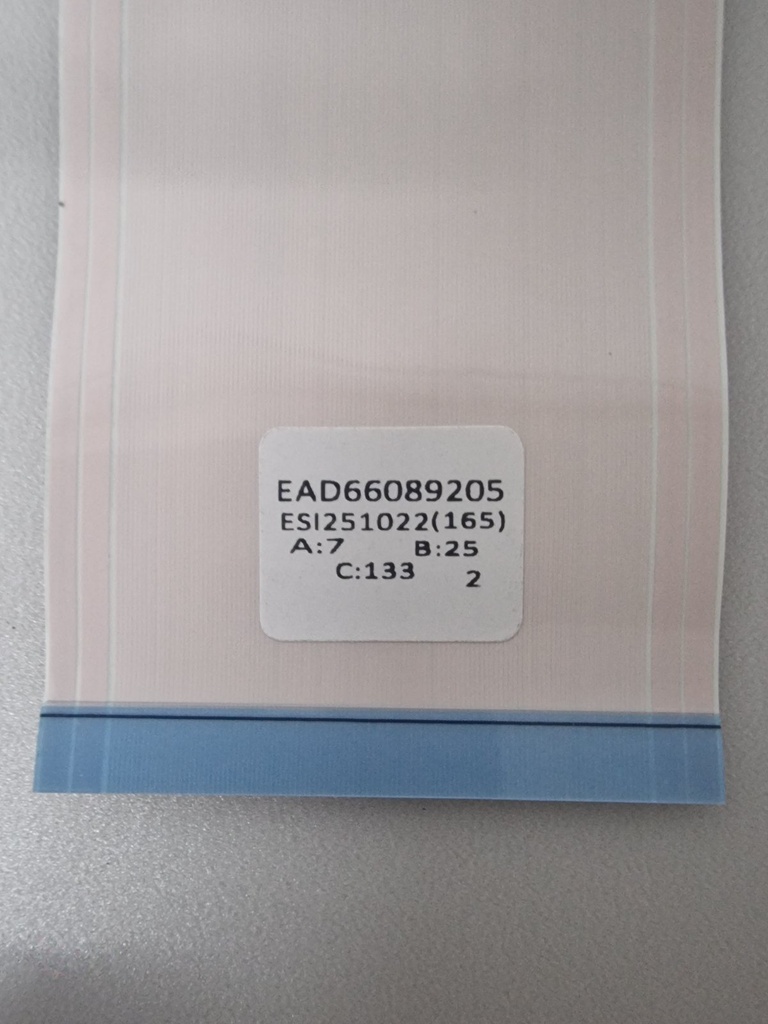

ReferenceEAD66089205 · ESI251022(165)
Extracted fromLG OLED48C54LA (OLED evo C5 48" 2025) new with damaged panel · S/N 602MASX29870 and 602MAMB29827 (2 twin donors) and 602MAMB29827 (2 twin donors)
ConditionGRADE A — UNUSED: flex intact, no creases or tears, perfect contacts
✓ WHEN YOU NEED IT

No image with correct sound, intermittent vertical stripes or an image that comes and goes when the TV is moved can be caused by a damaged flex — and it's the part that breaks most often when handling the TV during repairs. Compare the printed code and the connectors with yours before buying.

📦 24/48H SHIPPING
Flat and protected
with tracking		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
