Samsung BN44-01361D Power Supply for TQ65QEF1AU QEF1 65 QLED TV 2025

56.95 € 56.95 EUR

56.95 €

Grade
- Grade A

This combination does not exist.

Add to cart

B★★★★ CONDITION: 0 HORAS Nueva · extraída de un equipo nuevo, cero horas de uso what's this? →

Ask us for real photosOn WhatsApp, before you buy

30-day returnsIf it doesn't fit, send it back

Come and see itSan Pedro de Alcántara (Marbella)

24/72h shippingInsurance included

Fuente de alimentacion Samsung Envio: Correos Express Envío: Repuesto grande

Tags	Fuente de alimentacion , Samsung , Envio: Correos Express , Envío: Repuesto grande

Description
Specifications

🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

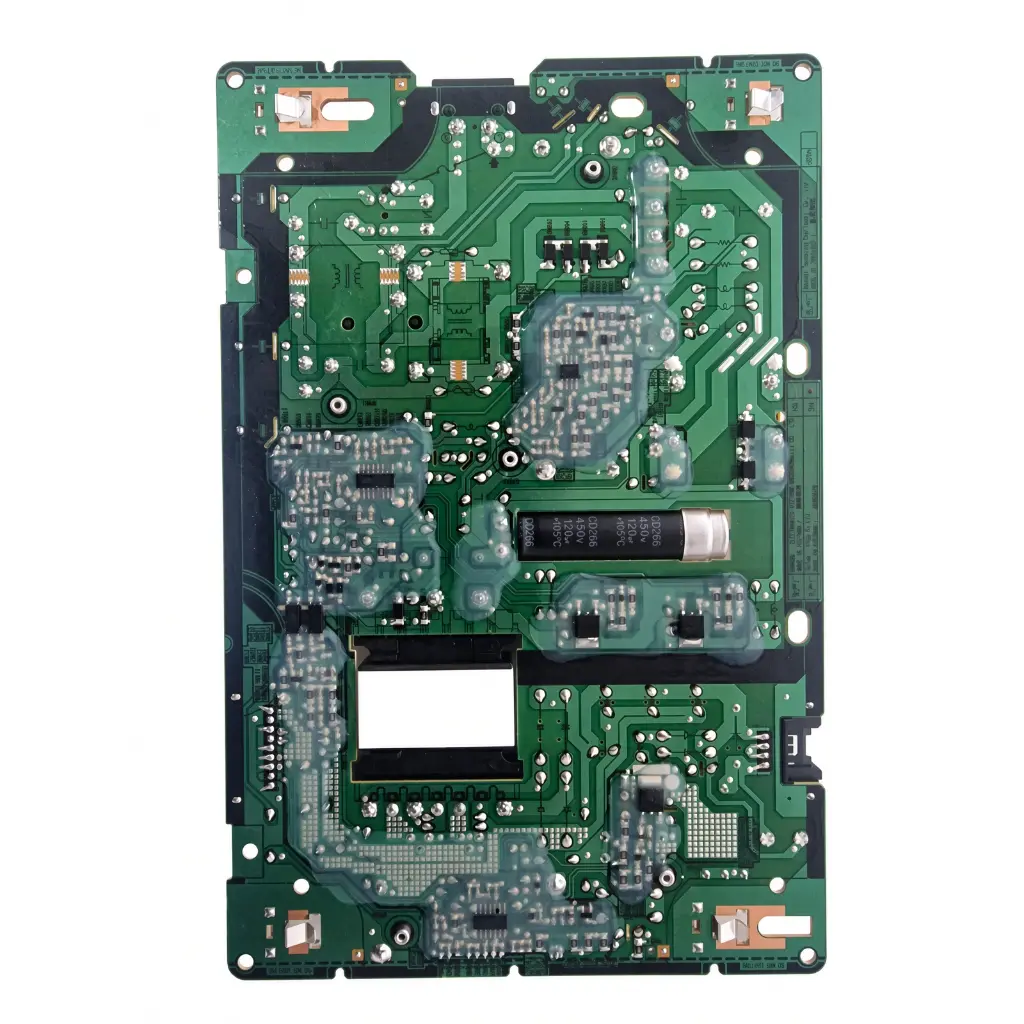

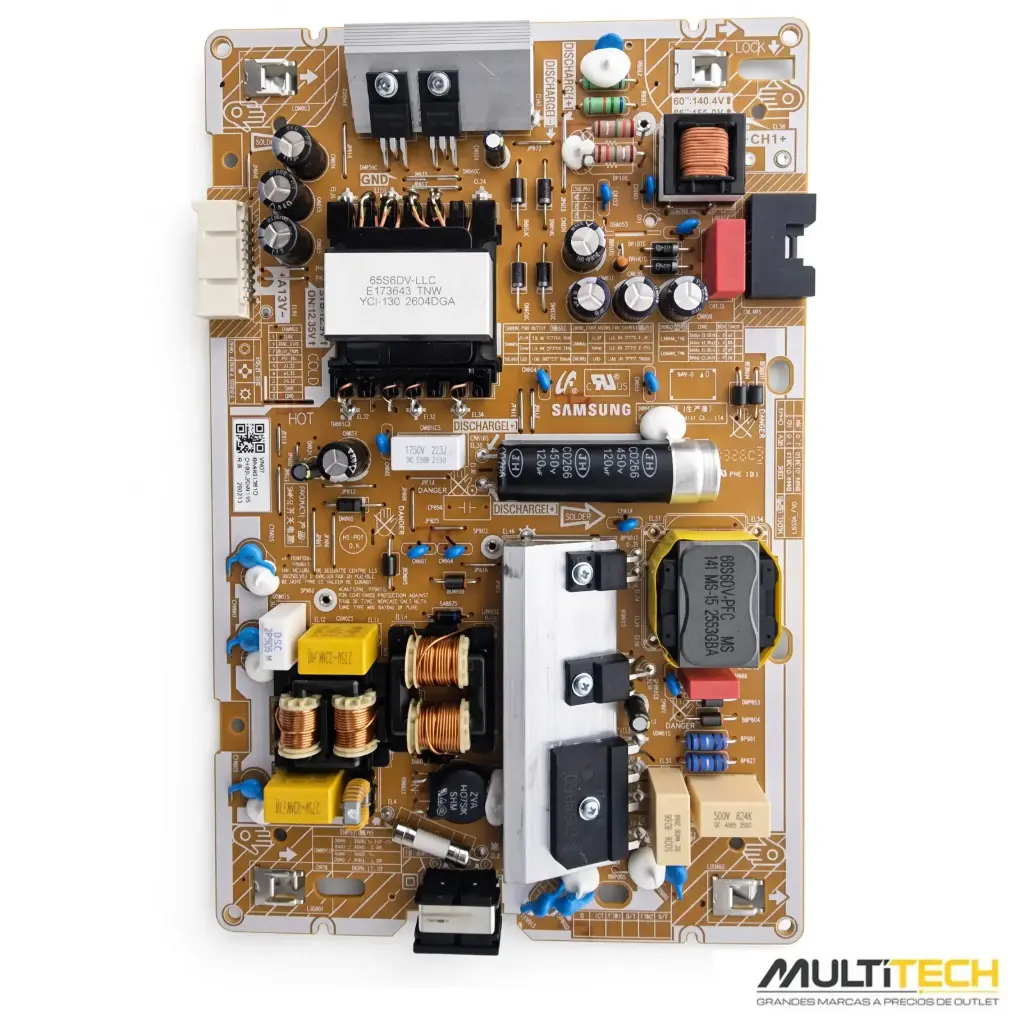

Power supply Samsung BN44-01361D

For Samsung QLED 65" QEF1 series (2025) · GRADE A ZERO HOURS OF USE

Reference	BN44-01361D
Manufacture	11/2024 — recent main board
Input	AC 200–240 V 50/60 Hz
Extracted from	Samsung TQ65QEF1AU (TQ65QEF1AUXXC) · Version 06 / QE1F · S/N 0GVQ3SDL501462V
Condition	GRADE A — ZERO HOURS OF USE: from a new TV with panel damaged in transit

✓ COMPATIBILITY AND SYMPTOMS

Verify that the BN44 reference on your board matches EXACTLY (including the final letter) before purchasing. Typical symptoms of a faulty power supply: TV that won't turn on, flashing standby light, relay clicking, random shutdowns, or backlight that fails to start. If in doubt, send us your TV model and version and we will confirm.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box

🛡 WARRANTY
Verified part
Returns accepted

🧾 INVOICE
Spanish company
VAT included

MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands

🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV does	Suspect no. 1	Also check
Completely dead, standby LED off	Power supply	fuse, mains cable
Standby LED blinks, won't start	Power supply	main board
Turns on and shuts off immediately	Power supply (protection)	main board, shorted LED strips
Sound OK, image visible only with a torch	LED strips	LED driver, power supply backlight stage
Sound OK, pitch black even with a torch	Main board (video circuit)	T-CON, LVDS flex
Dark areas or uneven brightness by zones	LED strips	LED driver
Vertical lines or half screen	T-CON	poorly seated LVDS flex
Odd colours or negative image	T-CON (gamma)	LVDS flex
Poor sound: distorted, rattling or one channel silent	Speakers	main board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)	WiFi/BT module	module flex cable, main board
Frozen image, artefacts, no response to the remote	Main board	firmware
Thin horizontal lines	⚠️ usually the panel (COF flex)	ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
