Mini LED bars LG 65" QNED93 (2025) — complete set

Complete matrix: 12 A-strips + 2 B boards + interconnection flex cable · Refs. 65HR332M36A3 + 65HR332M36B2 · ZERO HOURS OF USE

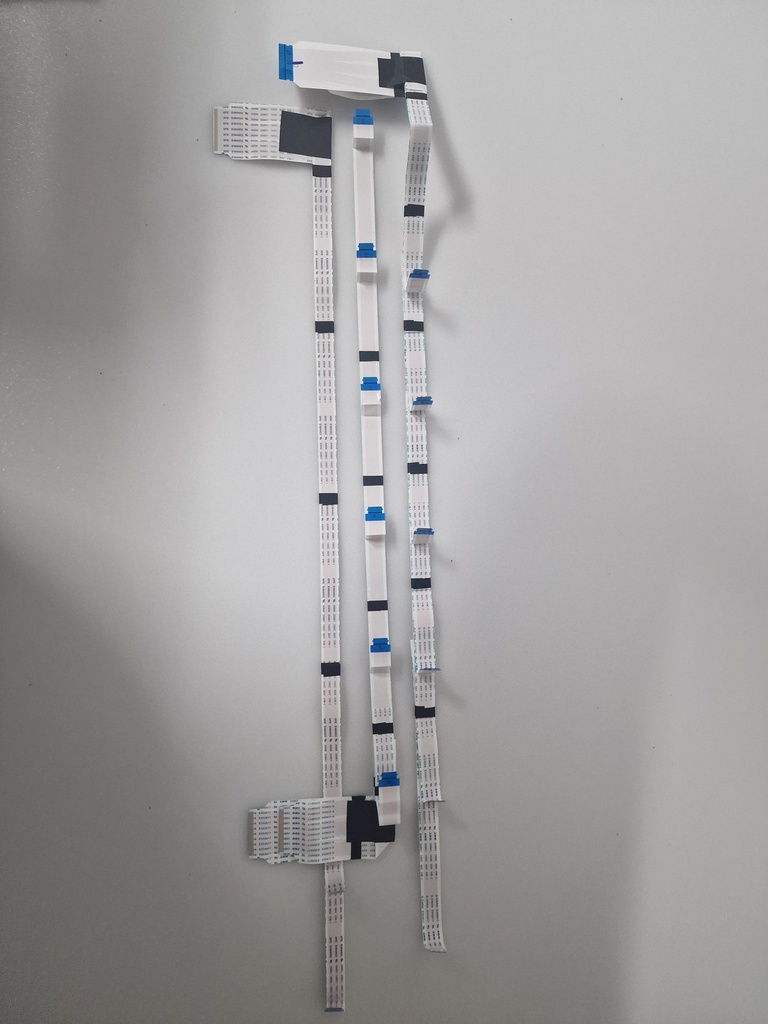

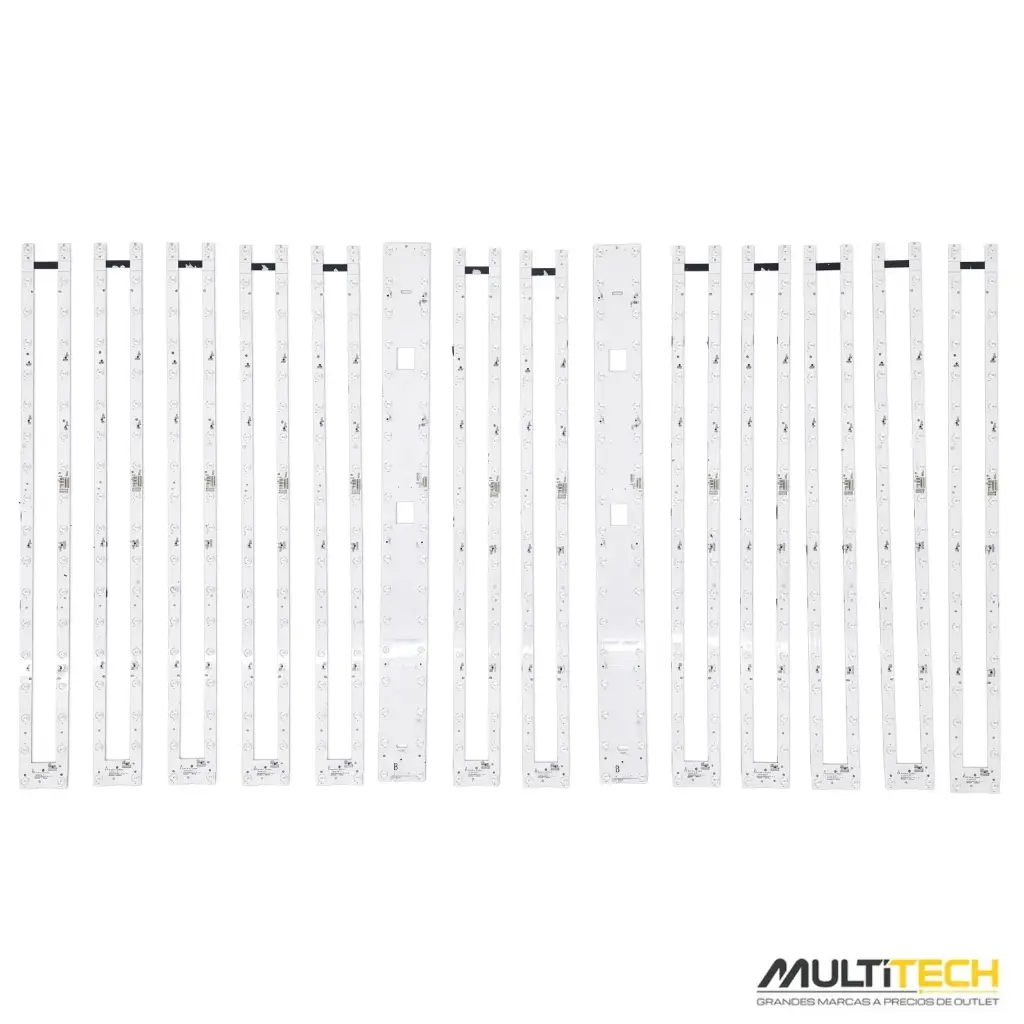

ContentsComplete Mini LED matrix set: 12 type A bars (65HR332M36A3 V0-E16) + 2 type B double boards (65HR332M36B2 V1-E16) + full set of original interconnection FFC flex cables, factory marked and numbered. Silkscreen marking 65X8500, 36 LEDs per column

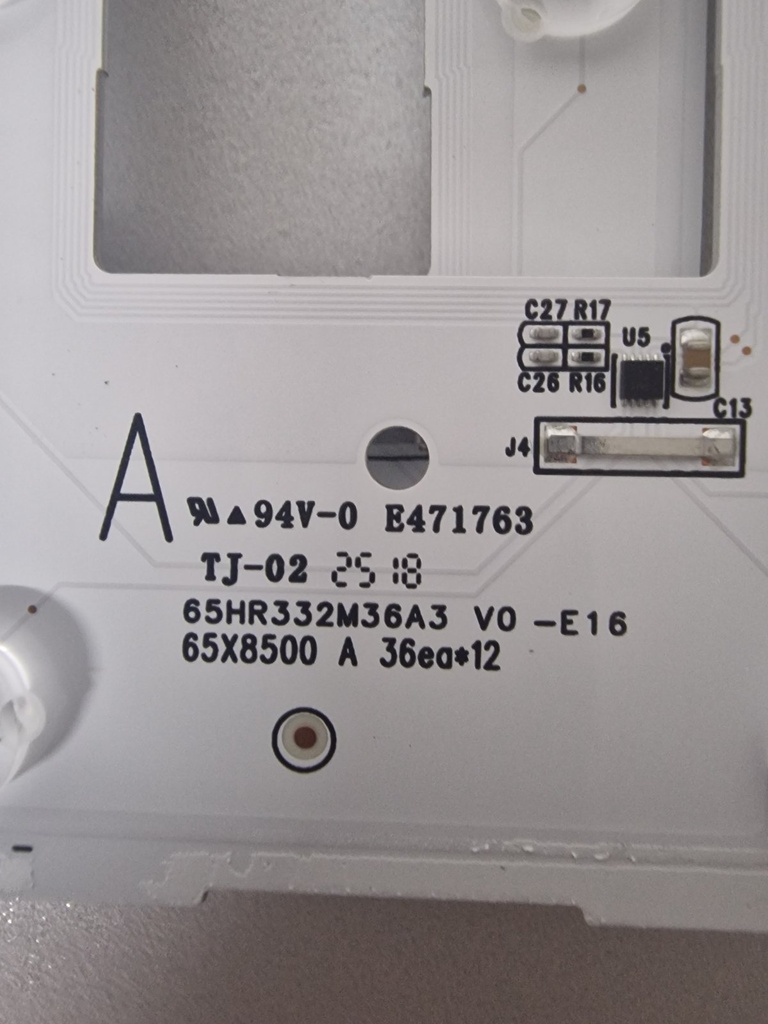

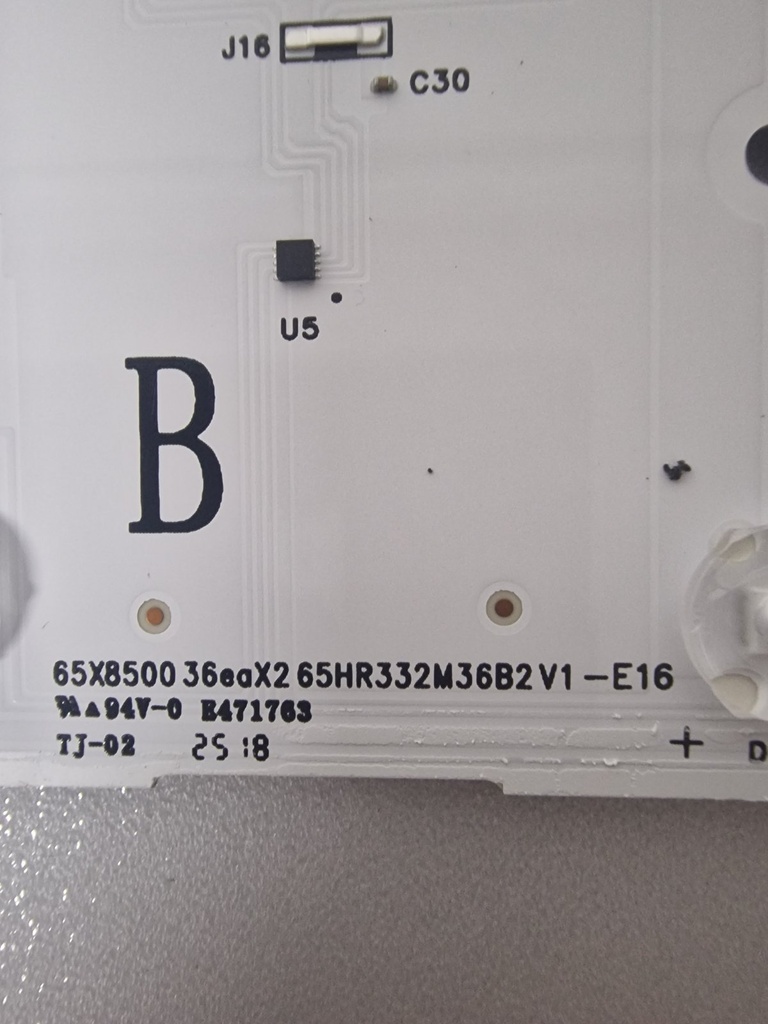

Silkscreen-marked part numbers65HR332M36A3 V0-E16 (A) / 65HR332M36B2 V1-E16 (B) · 65X8500 · UL E471763 · TJ-02 2518 (see photos)
Extracted fromLG 65QNED93A6A (QNED evo Mini LED 65", 2025) · Manufactured 09/2025 · S/N 509TAJD0N092
ConditionGRADE A — ZERO HOURS OF USE: from a new TV with panel damaged in transit. LEDs at 100% factory brightness, lenses intact
✓ CHECK COMPATIBILITY

Compatible with LG QNED Mini LED 65" with backlight 65X8500 (QNED93 2025 range; possible use in QNED85/90 of the same chassis: verify). For LED strips, ALWAYS compare the silkscreen marking reference (65HR332M36A3 / 65HR332M36B2) and the lens arrangement with those of your TV before purchasing — if in doubt, send us the full model and version of your TV (rear label) and we will confirm with no obligation. Most strips on the market are extracted from TVs with thousands of hours of use and degraded LEDs: these have never been switched on.

📦 24/48H SHIPPING
Flat on a rigid backing
protected and with tracking		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
