TCL 65Q7C 65Q7CX1 LED Driver Board 40-KJUFKC-DCB2LG with Local Dimming TSR741

39.95 € 39.95 EUR

39.95 €

Grade
- Grade A

This combination does not exist.

Add to cart

B★★★★ CONDITION: 0 HORAS Nueva · extraída de un equipo nuevo, cero horas de uso what's this? →

Ask us for real photosOn WhatsApp, before you buy

30-day returnsIf it doesn't fit, send it back

Come and see itSan Pedro de Alcántara (Marbella)

24/72h shippingInsurance included

TCL Placas TV Driver LED Envio: Correos Express Envío: Repuesto grande

Tags	TCL , Placas TV , Driver LED , Envio: Correos Express , Envío: Repuesto grande

Description
Specifications

🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

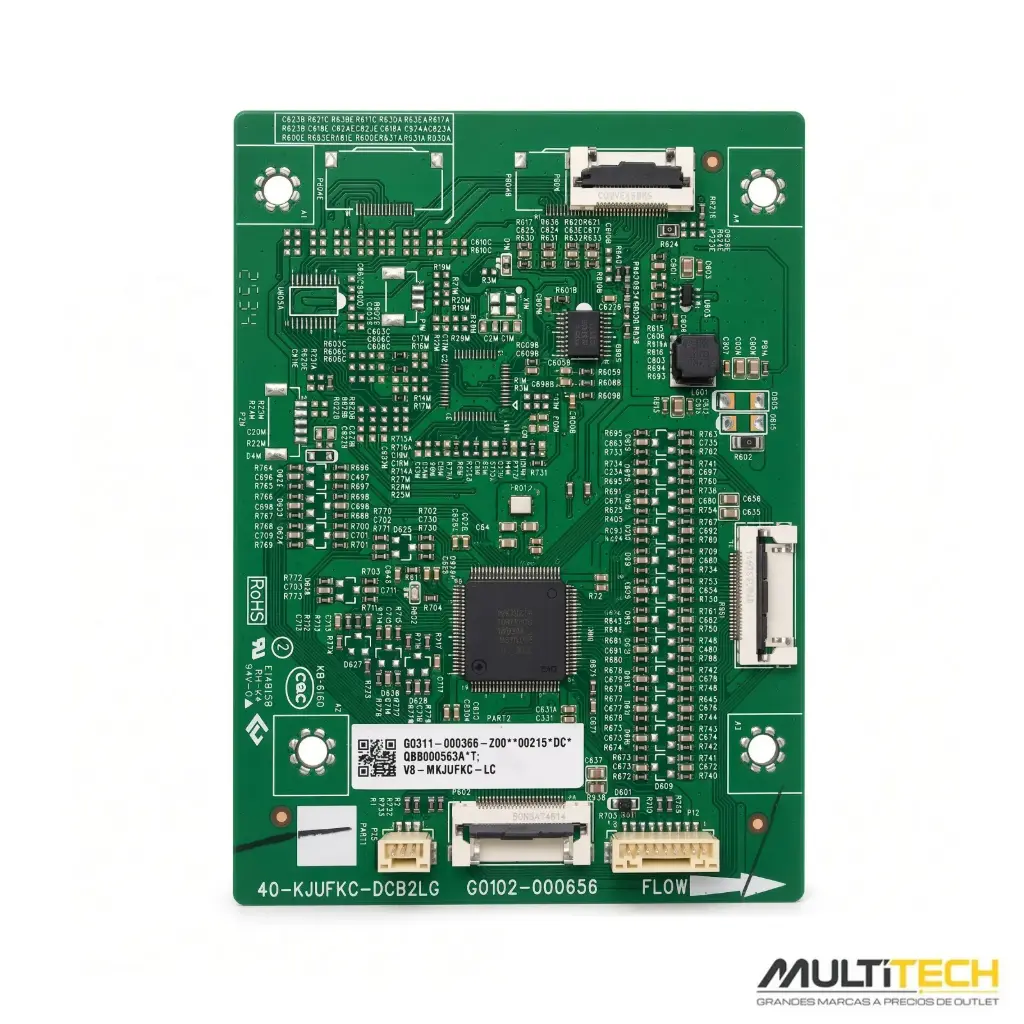

Main board driver LED (local dimming) TCL 40-KJUFKC-DCB2LG

Controller TCL TSR741 · 40 zone channels · V8-MKJUFKC-LC

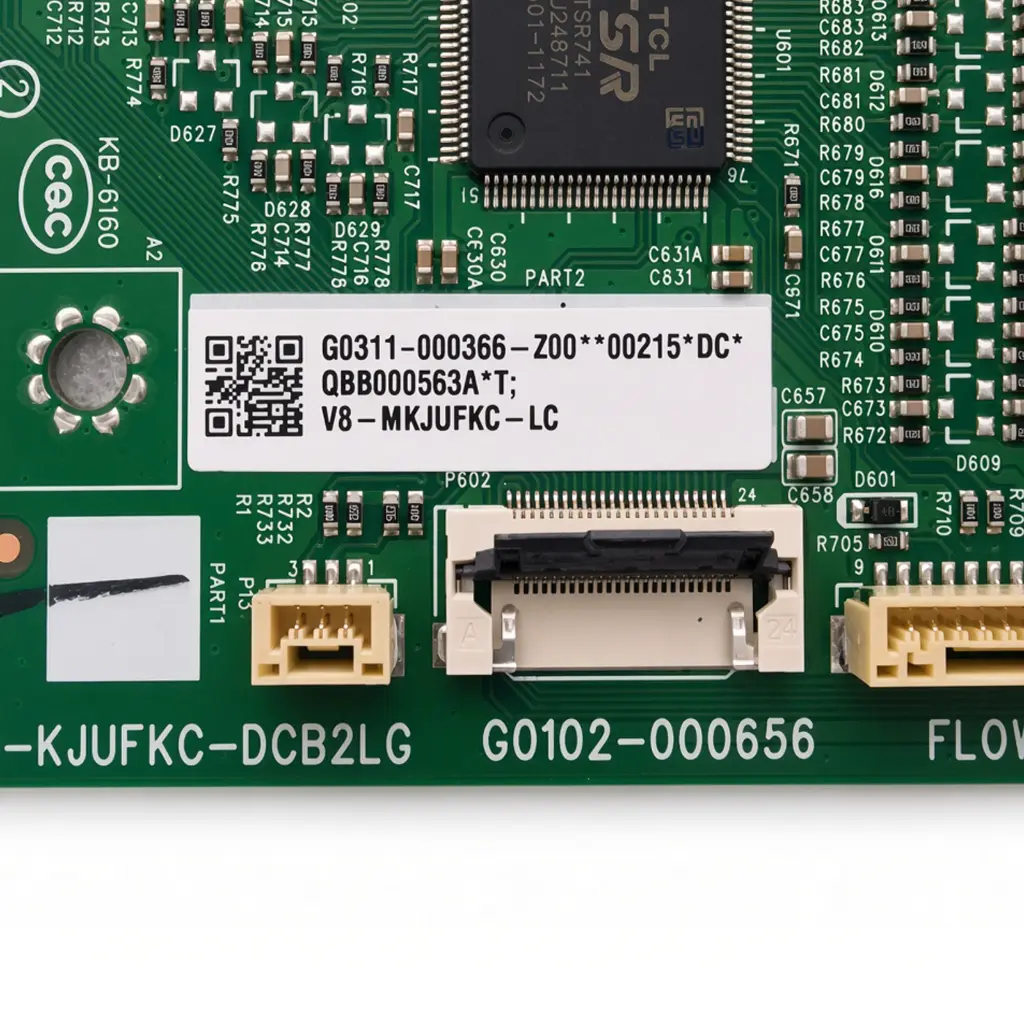

Board reference	40-KJUFKC-DCB2LG · G0102-000656
Software version	V8-MKJUFKC-LC (QBB000563A)
Controller	TCL TSR741 — zone backlight driver (local dimming)
Channels	40 zone LED outputs (DI1-DI40)
Extracted from	TCL 65Q7C (65Q7CX1) · S/N Z2547007455
Condition	GRADE A — extracted from a new TV with a damaged panel, zero hours of use

✓ COMPATIBILITY

Extracted from TCL 65Q7C (65Q7CX1, Q7 series 2024/2025, CSOT panel). IMPORTANT: verify that the silkscreen marking reference on your board matches EXACTLY the one in the photos before purchasing. If unsure, send us the full model and serial number of your TV (rear label) and we will confirm compatibility with no obligation. Typical symptoms of a faulty board: dark areas on the image, backlight flickering by sector, or TV with sound but no picture.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box

🛡 WARRANTY
Verified part
Returns accepted

🧾 INVOICE
Spanish company
VAT included

MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands

🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV does	Suspect no. 1	Also check
Completely dead, standby LED off	Power supply	fuse, mains cable
Standby LED blinks, won't start	Power supply	main board
Turns on and shuts off immediately	Power supply (protection)	main board, shorted LED strips
Sound OK, image visible only with a torch	LED strips	LED driver, power supply backlight stage
Sound OK, pitch black even with a torch	Main board (video circuit)	T-CON, LVDS flex
Dark areas or uneven brightness by zones	LED strips	LED driver
Vertical lines or half screen	T-CON	poorly seated LVDS flex
Odd colours or negative image	T-CON (gamma)	LVDS flex
Poor sound: distorted, rattling or one channel silent	Speakers	main board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)	WiFi/BT module	module flex cable, main board
Frozen image, artefacts, no response to the remote	Main board	firmware
Thin horizontal lines	⚠️ usually the panel (COF flex)	ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).

Grade

Grade A
